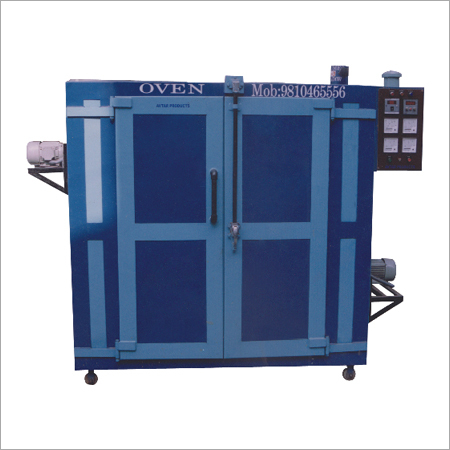

Industrial Oven

Industrial Oven Specification

Heating Capacity
6 kW

Control Mode
Digital PID Controller

Power Source
Electric

Condition
New

Accuracy
1C

Heating Method
Forced Air Circulation

Type
Batch Type

Model
Industrial Oven IO-1208

Internal Size
1200 x 800 x 1200 mm

External Size
1580 x 1050 x 1730 mm

Volume
1152 Litres

Air Flow
Uniform, Horizontal

Temperature Range
Ambient to 300C

Material
Mild Steel, Powder Coated

Dimension (L*W*H)
1580 x 1050 x 1730 mm

Power
6.5 kW

Voltage
380 V

Surface Finish
Powder Coated

No. of Trays
6 Adjustable Removable Trays

Heating Element Material
Nichrome Wire

Display
Digital LED

Humidity Control
No

Door Type
Single Door, Gasket Sealed with Heavy Duty Hinges

Mobility
Heavy Duty Lockable Castor Wheels

Programmable Features
Multi-step Timed Heating Cycle

Chamber Lighting
High Intensity Internal Lamp

Noise Level
< 65 dB

Safety Features
Over-temperature Protection, Emergency Stop

Insulation Thickness
100 mm Ceramic Wool

About Industrial Oven

We have secured a distinguished position in the market as an exporter, manufacturer, supplier and trader of Industrial Oven. Used for industrial purpose, the Industrial Oven has a key role in pre-heating and drying of different materials. The notable features of this oven are its double walled inner side which is made of CRC sheet and blowers. The other necessary details regarding our superior quality machine include --

Heating	Electrical, LPG Gas, Hot Air Generator
Air Circulator	Blowers
Insulations	Fully Insulated

Efficient, Customizable Heating System

Engineered for demanding batch processes, the IO-1208 industrial oven features six adjustable trays and multi-step programmable cycles, accommodating diverse material sizes and process requirements. Its forced air circulation ensures uniform temperature distribution within the spacious 1152-litre chamber, making it a versatile asset for various heat treatment applications.

Reliability and Durability in Every Cycle

Constructed with a powder-coated mild steel exterior and 100 mm ceramic wool insulation, this oven delivers durability and operational efficiency. Heavy-duty hinges, a single gasket-sealed door, and robust mobility via lockable caster wheels guarantee long-term reliability and safety, even in rigorous industrial settings.

User-Friendly Digital Controls and Safety

The ovens digital LED display and PID controller allow unparalleled precision, while safety mechanisms such as over-temperature protection, emergency stop, and high-intensity internal lighting create a secure operational environment. Maintenance is straightforward, supporting consistent and worry-free usage.

FAQs of Industrial Oven:

Q: How does the forced air circulation heating method benefit industrial processes?

A: Forced air circulation in the IO-1208 oven ensures uniform horizontal airflow throughout the chamber, allowing consistent heating and preventing temperature fluctuations. This benefits processes that require even heat treatment and precise temperature control, enhancing product quality.

Q: What are the usage options provided by the adjustable and removable trays?

A: The six adjustable and removable trays accommodate various product sizes and quantities, enabling flexible batch processing. You can easily reconfigure or remove trays for different applications, from light assemblies to larger components, optimizing the loading and heating process.

Q: When is it necessary to use the emergency stop or over-temperature protection features?

A: The emergency stop and over-temperature protection should be engaged if the oven malfunctions, exceeds set temperature limits, or during any unsafe operational conditions. These features provide immediate shutdown to protect personnel, products, and the oven itself.

Q: Where is the Industrial Oven IO-1208 best utilized?

A: This oven is ideal for manufacturing, processing, and industrial environments requiring precise, controlled heatingsuch as in metal treatment, electronics drying, paint curing, or product sterilization. Its robust design and mobility support diverse factory or workshop layouts.

Q: What is the process of setting a multi-step timed heating cycle?

A: Utilizing the digital PID controller, users can program multiple temperature setpoints and durations to create a custom heating profile. The oven then automatically transitions between steps, ensuring accurate and repeatable heat treatment for complex processes.

Q: How does the oven ensure operator safety and ease of monitoring?

A: Safety features such as over-temperature protection, emergency stop, and a gasket-sealed door reduce risk, while a digital LED display and high-intensity internal lamp allow clear monitoring of temperature and chamber conditions during operation.

Q: What are the benefits of the ovens construction and insulation materials?

A: The mild steel powder-coated exterior provides durability and corrosion resistance, while 100 mm ceramic wool insulation ensures minimal heat loss, maintaining energy efficiency and consistent chamber temperatures during prolonged use.
